Building a real log cabin – 18 months on

As with all good building projects progress takes time! We are now ‘semi-finished’. The building work is long since complete. Fit-out of the interior is just about there (room partitions, doorways, wall lining, stairs, built in beds and storage, bathrooms, toilet cubicles, showers, and more). Plumbing….mmm tough one but it’s coming.

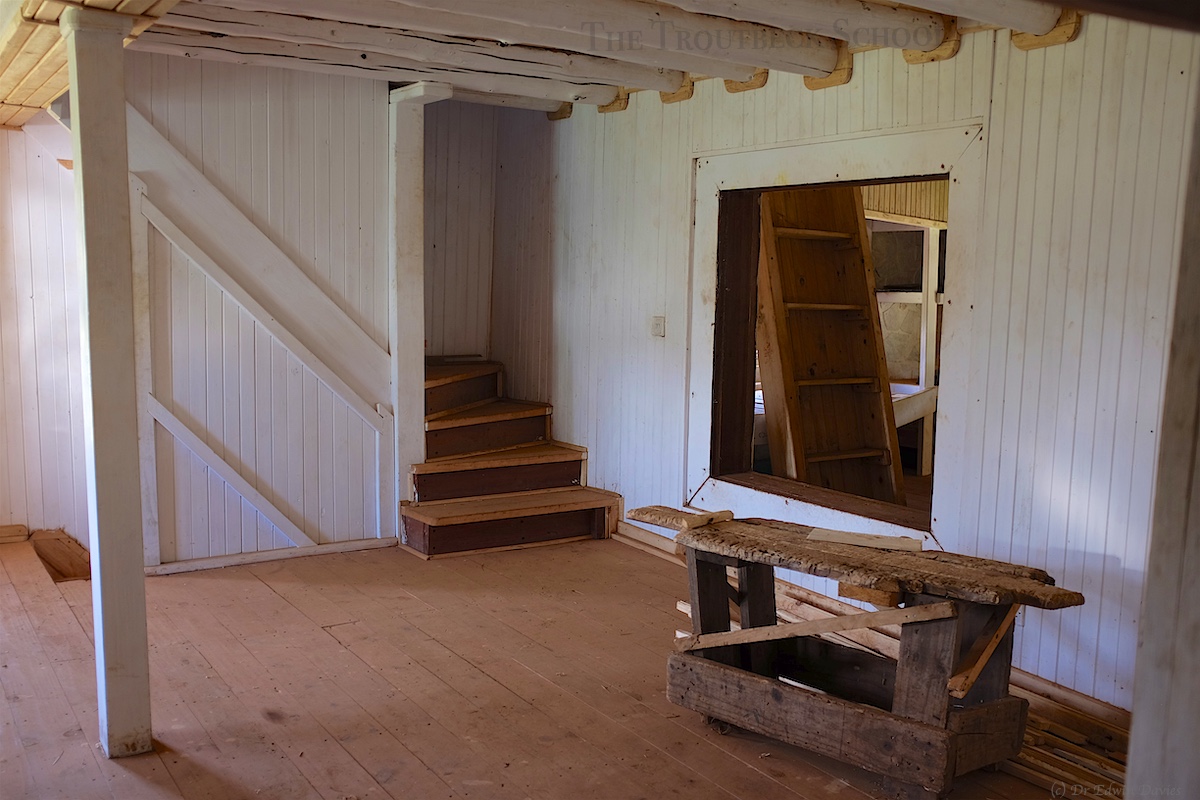

Square ‘Hobbit-style’ doors cut through the log walls



Bunk bed to the right of picture above

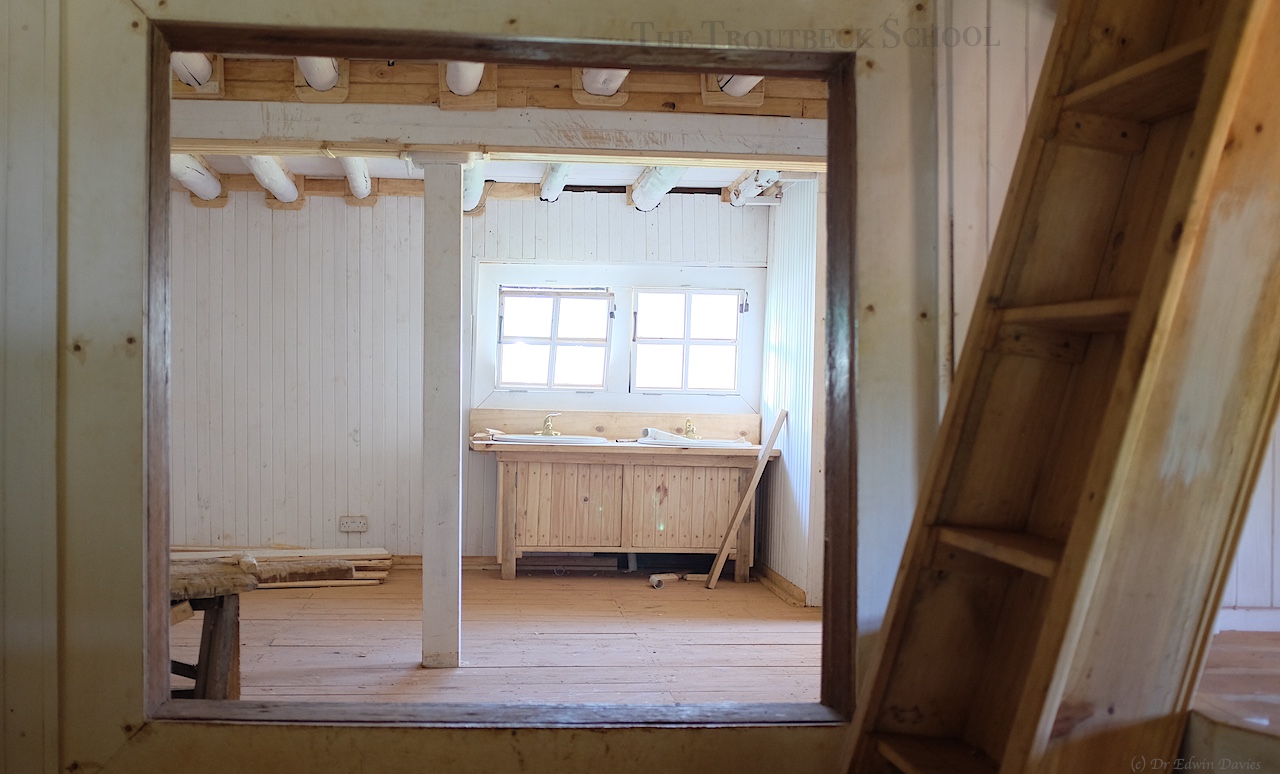

That square doorway from the other side. Stairs up to 3rd level.

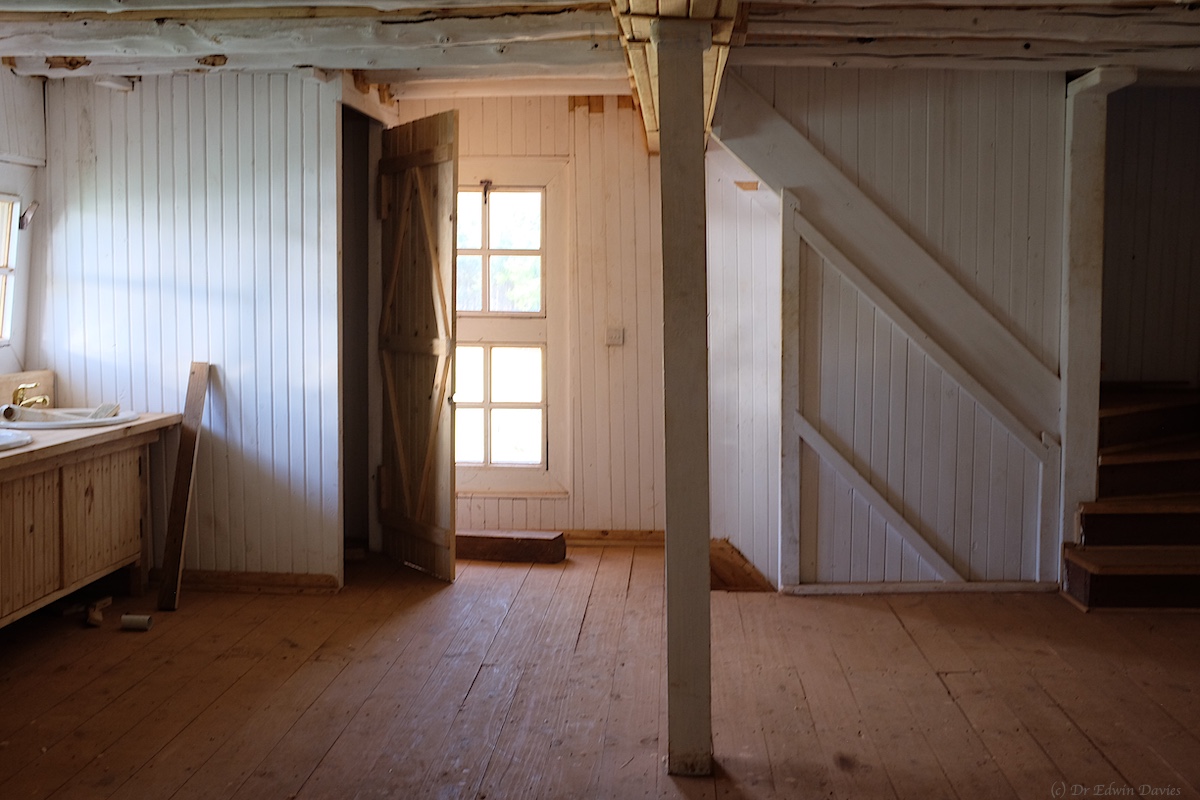

Further to the left – toilet cubicle and sink. Stairs down to immediate right of window.





Off to a different room.

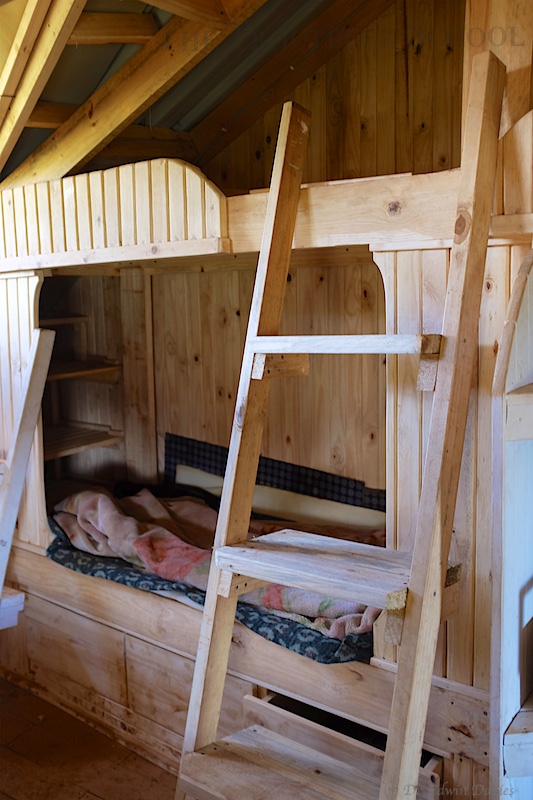

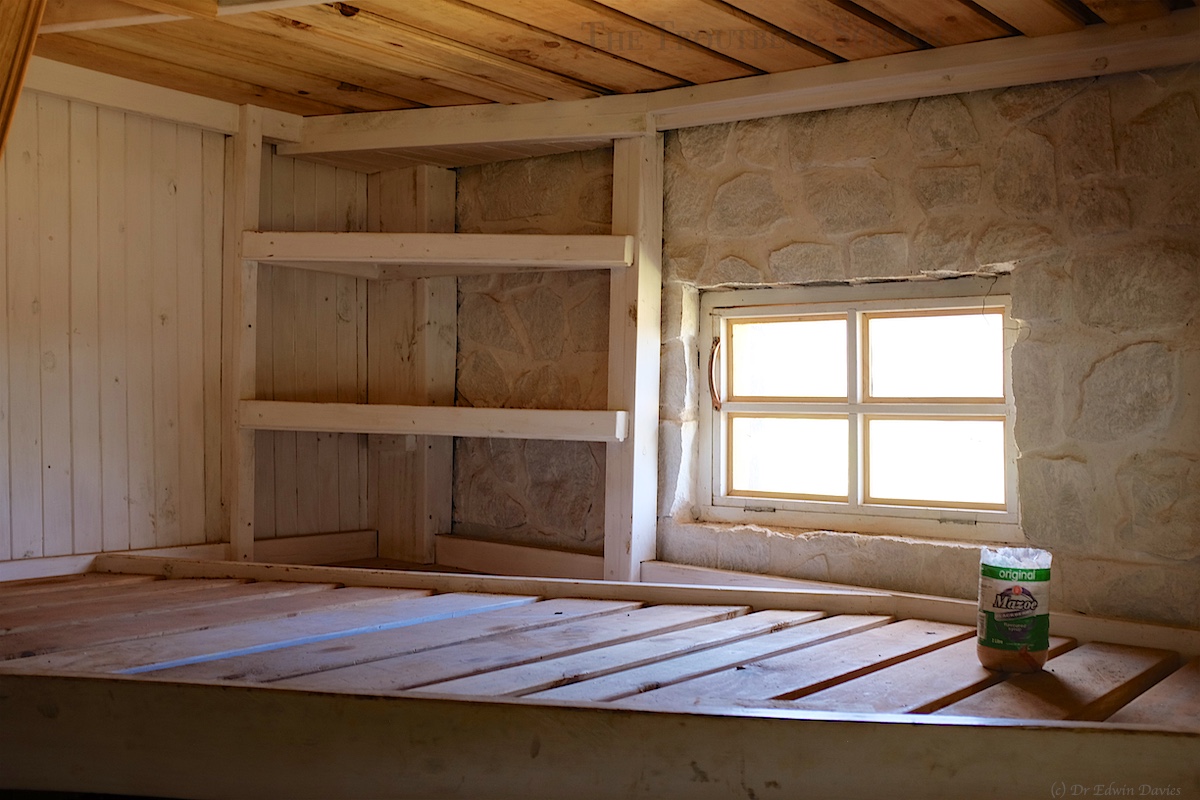

Bunk bed under dormer window



Same room – other direction

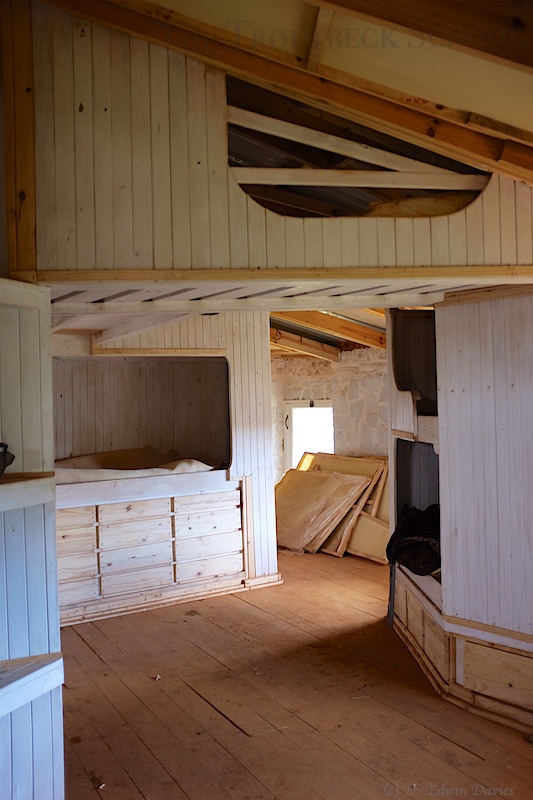

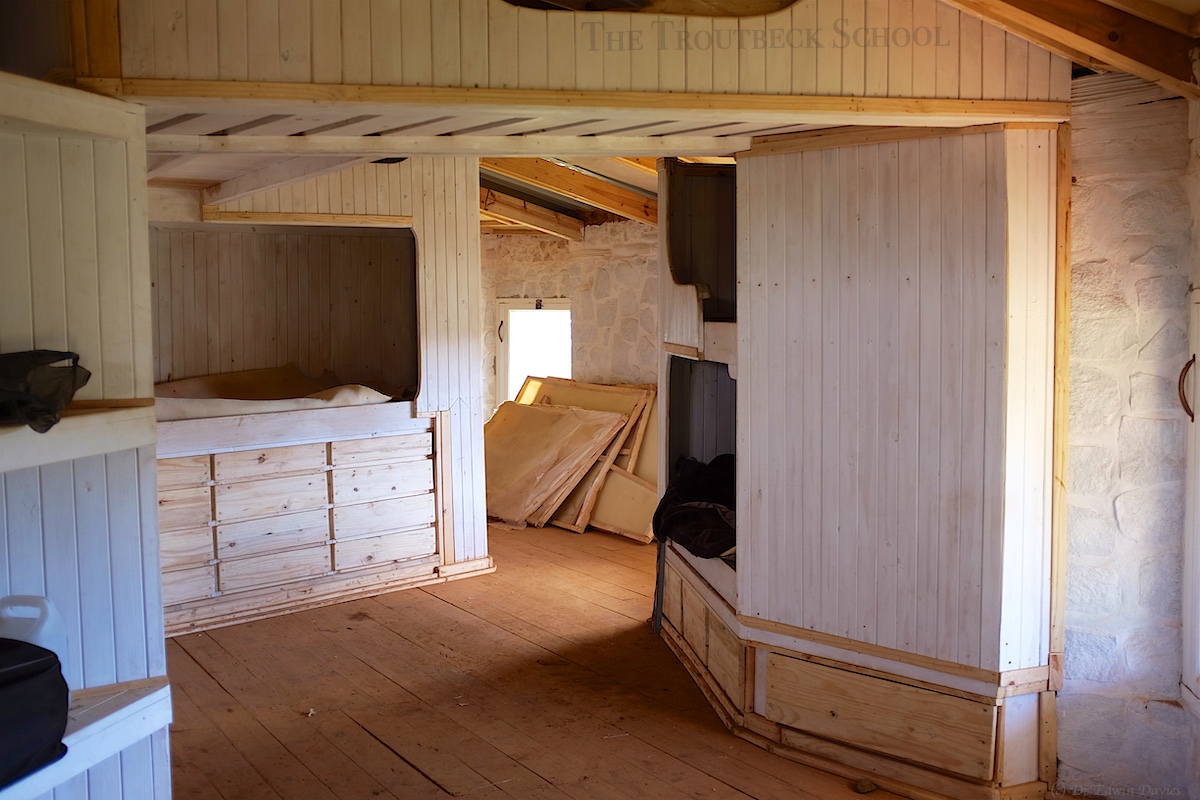

Now we play spot the beds – there are 5 you can just about see!

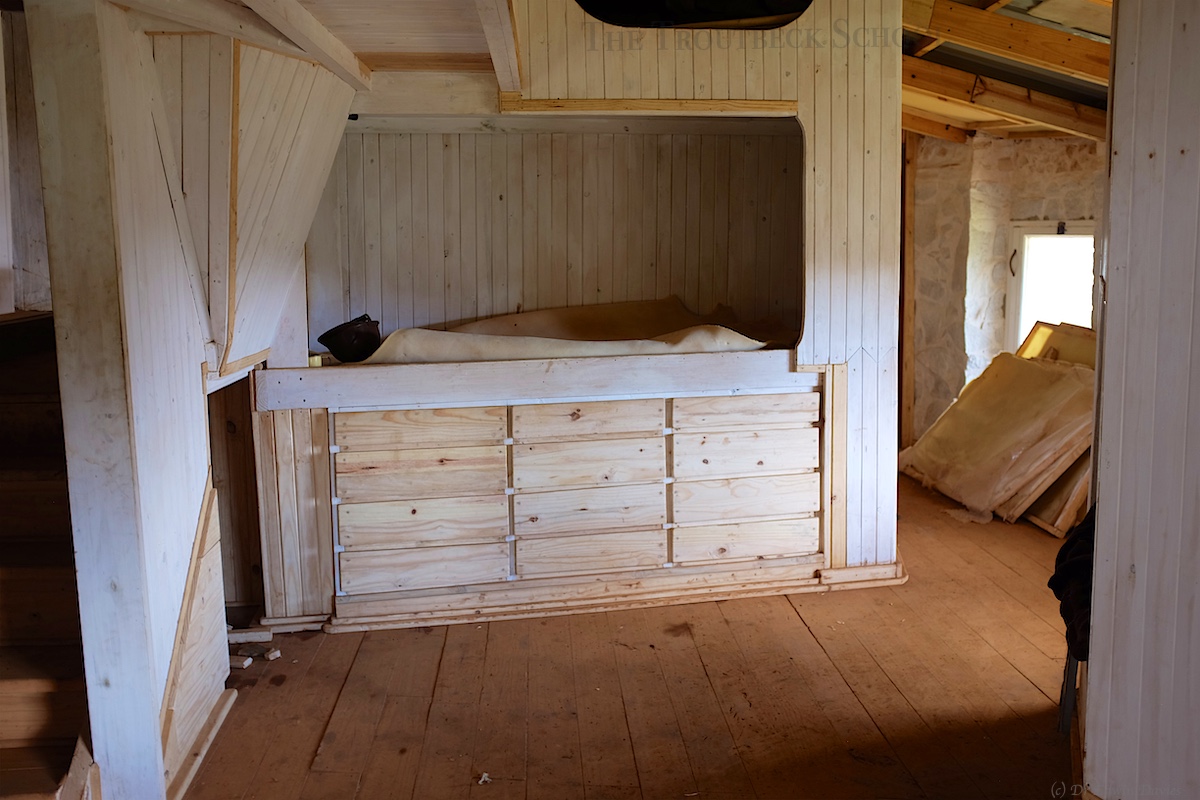

One bed in the opening above the draws – then there is a top bunk bed above that (hidden in this picture). Bunk beds to the right with draws underneath. That makes four beds. And the fifth bed – it’s flying overhead.

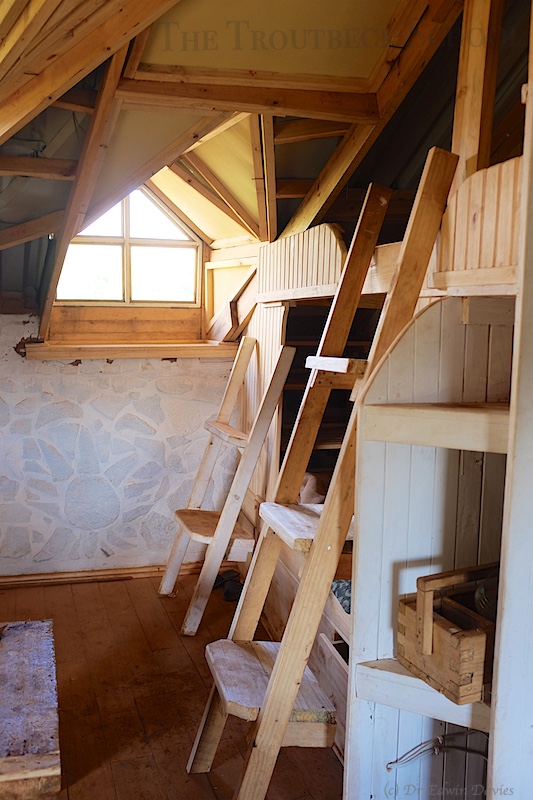

Including the fifth bed over head! (Built like this to customer specification)

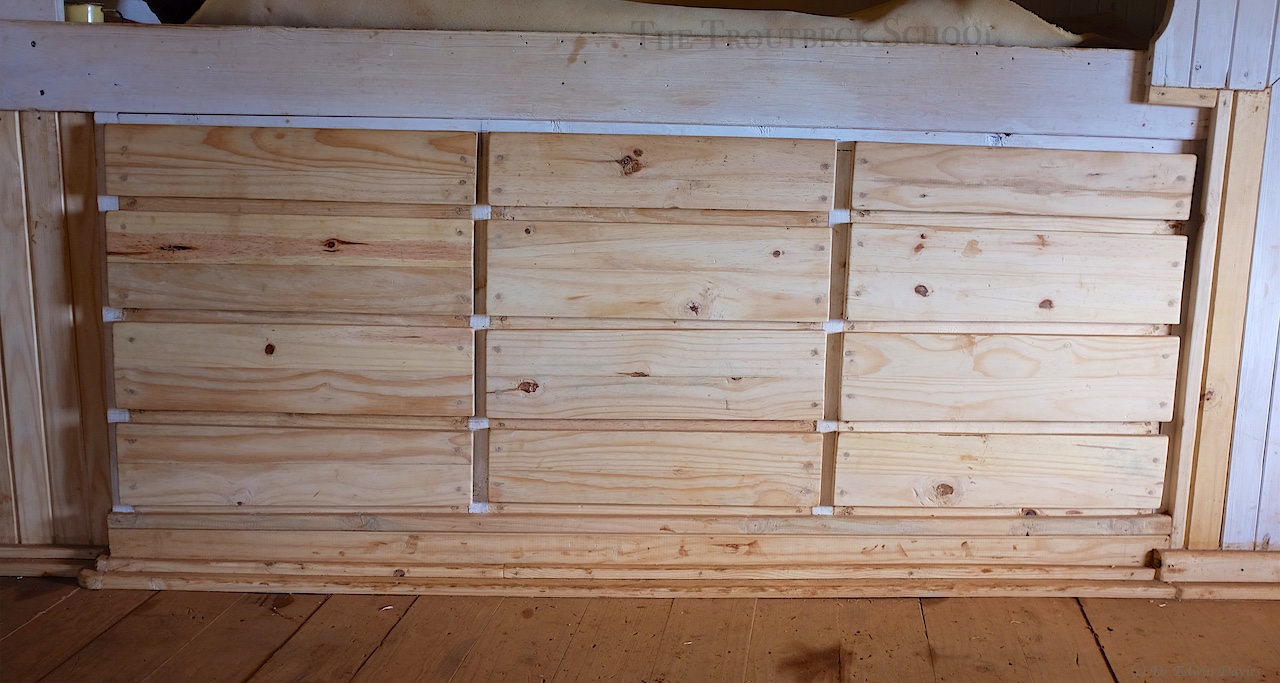

With draws

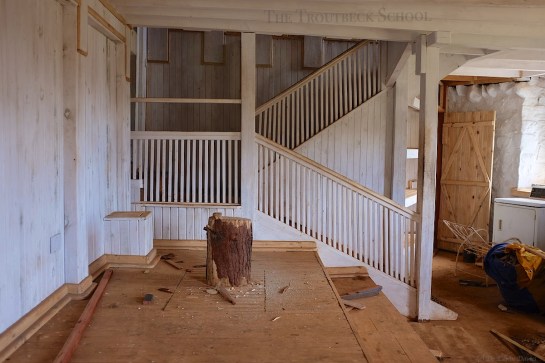

Looking from the main entrance hall to the stairs up to the rooms inside. Doorways to the left up first flight and up second flight to the right. Split level design (nightmare).

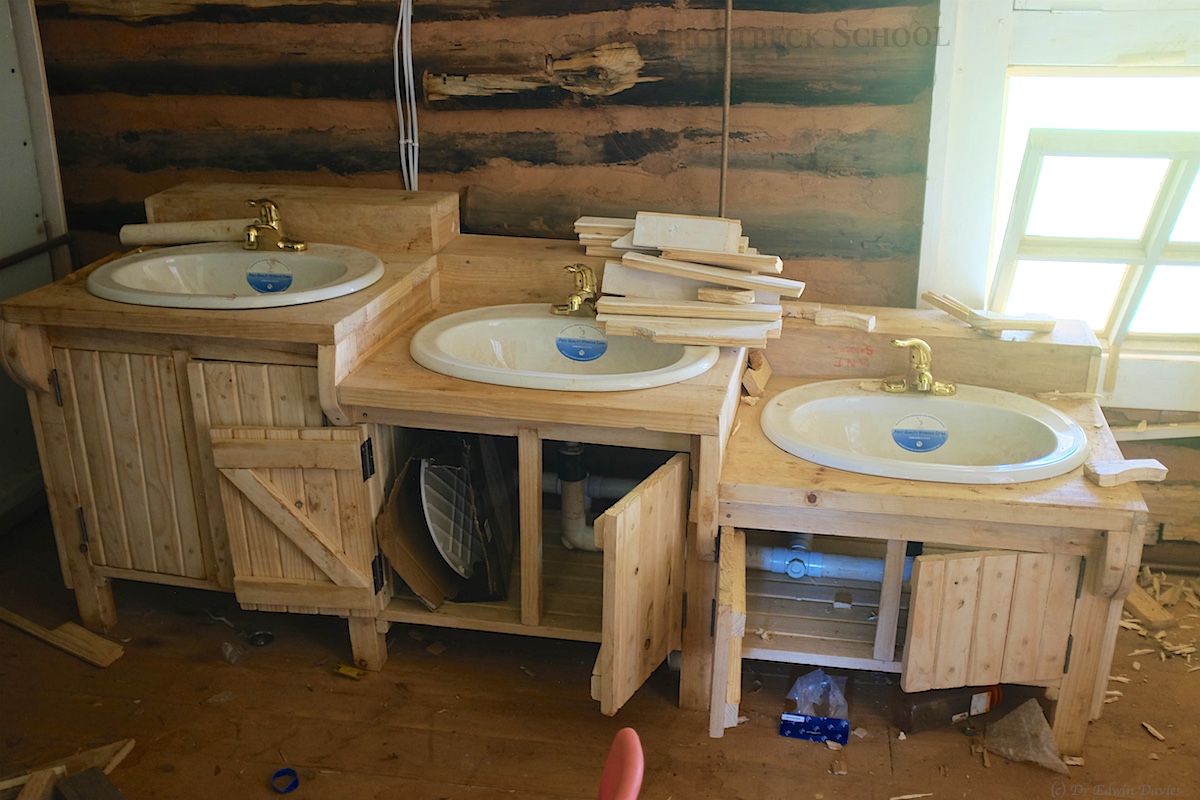

And did I mention the plumbing!







Upgrading to a 50 KVA transformer

The ‘Davies and Daughters Towing Company’ just helped out ZESA and collected a nice heavy 3 phase 50 KVA transformer using the flat bed trailer. Then hauled it up and swapped it out with the 10 KVA unit.

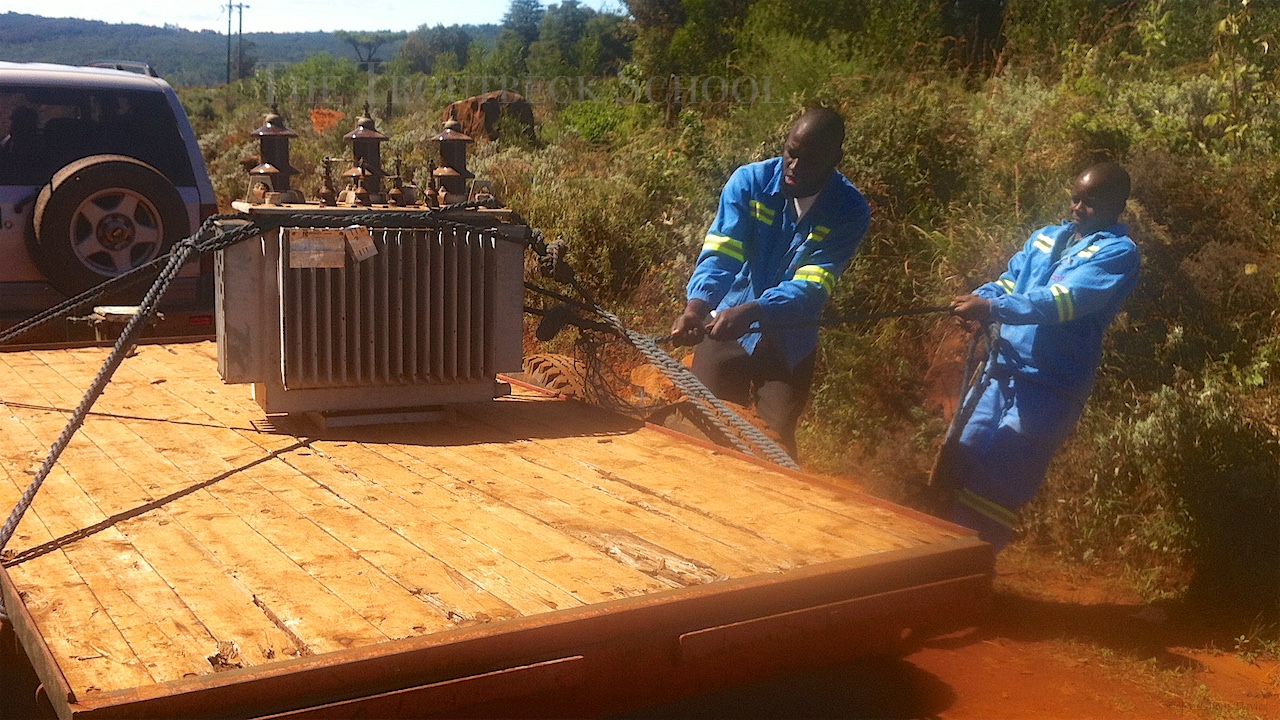

Re-securing the transforming to the trailer part way through a bumpy ride



On site and waiting patiently until the old one is lowered down

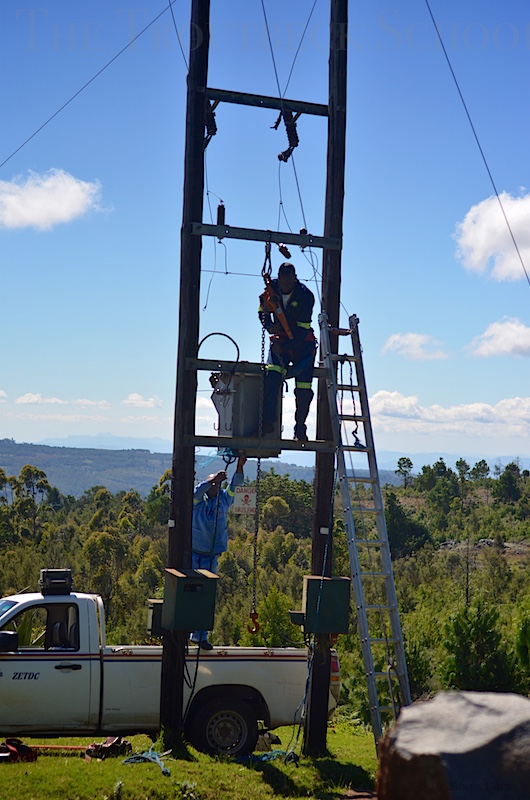

ZESA starting to remove the old 10 KVA transformer

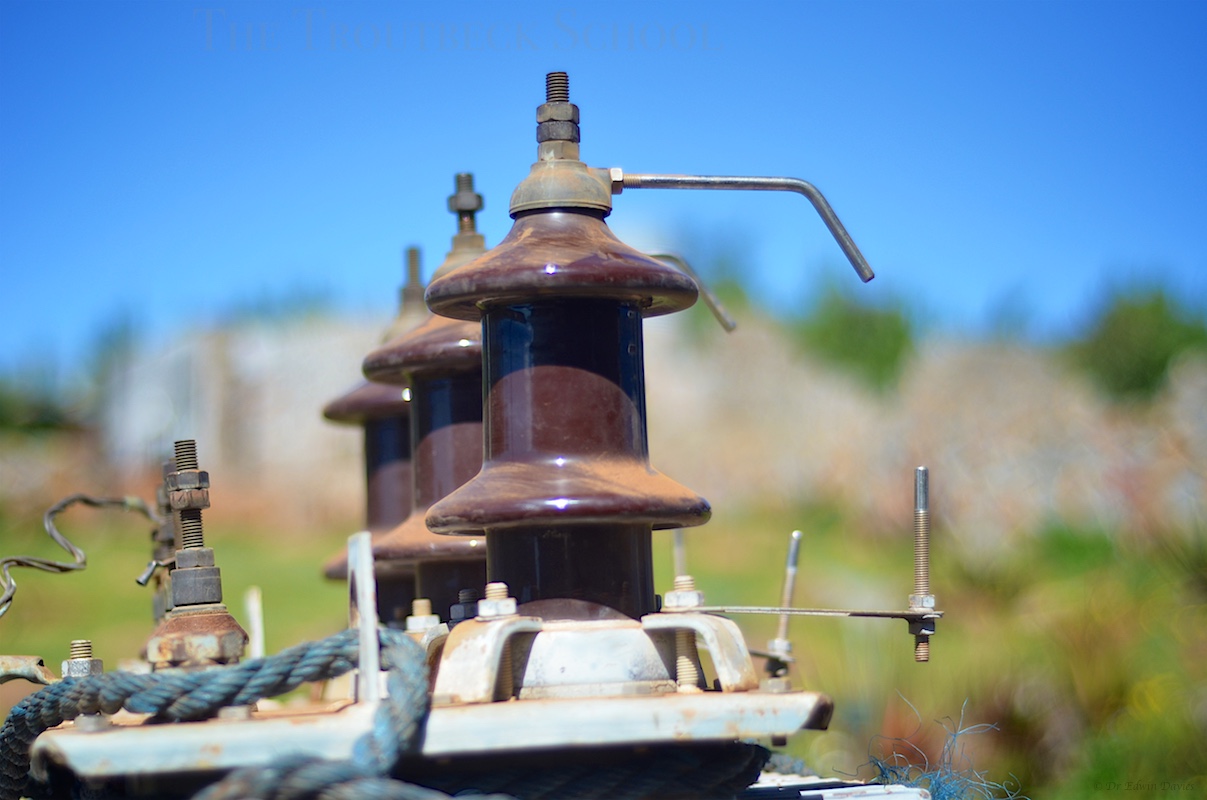

Arcing horns on the 50 KVA oil immersion transformer

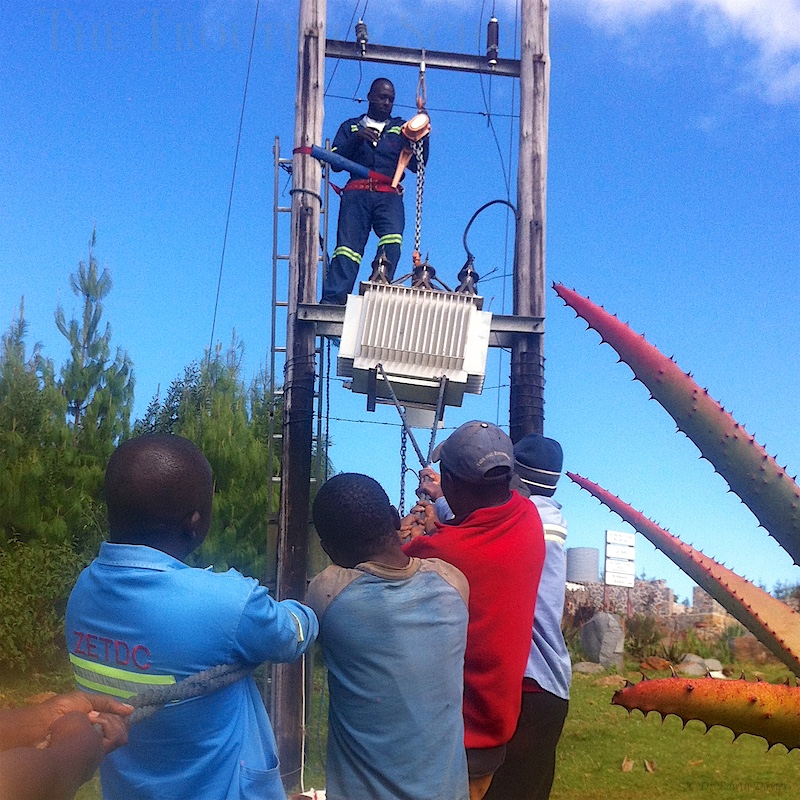

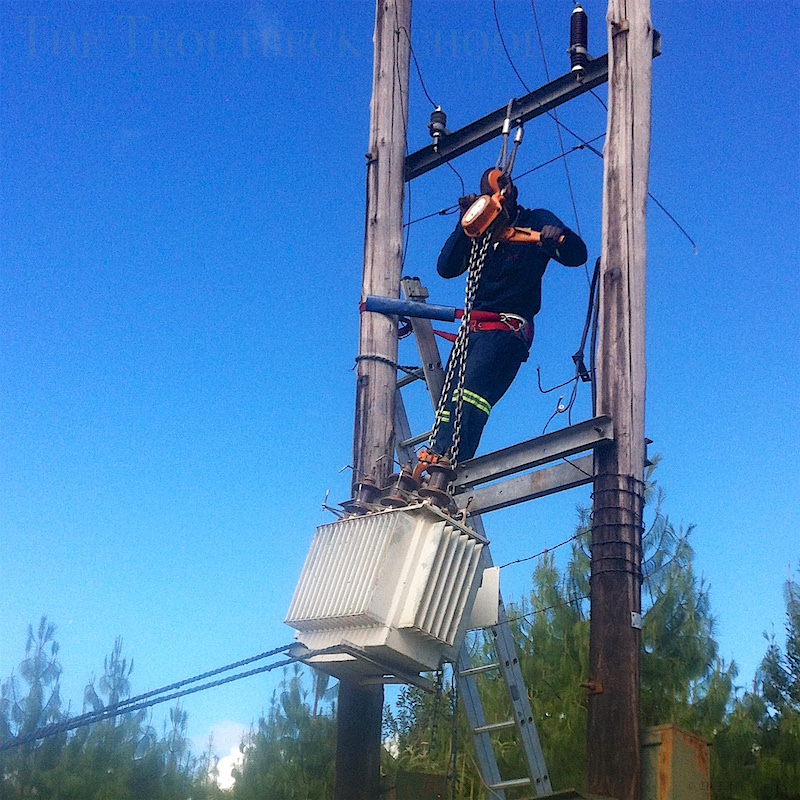

Pulling up the new transformer onto a newly created platform

This thing weighs in somewhere around 550 kg including windings and oil.

Pulling up the new transformer onto a newly created platform



Thank you ZESA!

Tree House Number 2: The Porch

The porch foundations were a bit more complicated than the main tree house. The porch is supported by what I may call an inverted 3D roof truss which spans between two tree stumps. Below you can see Didymus balancing on the mid point of the truss (temporarily supported at each end).

Didymus balancing on the inverted 3D truss

Didymus balancing on the inverted 3D truss



To make matters more interesting you can see that the last tree stump (on the right – below) was way too short.

Inverted 3D truss

Inverted 3D truss



The last stump was too short

The last stump was too short!



Thus we used an “Alpine” style cross made of  simbi (metal) by Soko. This anchored the centre of the truss firmly into the tree stump with the help of some cement. So technically the tree house still doesn’t touch the ground (yet) – it just has a steel-cement support in one tree stump.



Metal cross inserted into hollowed out tree stump

Metal cross inserted into hollowed out tree stump



Cement being added into the stump

Cement being added into the stump



Now a well anchored inverted 3D truss foundation

Now a well anchored inverted 3D truss foundation



Porch floor and steps up

Porch floor and steps up to main house



Porch window

Porch window



Looking north through the porch

Looking north through the porch



Working on the stairs up

Working on the stairs up



Working on the stairs up

 The banisters



Looking north again - with roof in place

Looking north again – with roof in place



Porch roofing structure

Porch roofing structure and lintels



Its taking shape now

Its taking shape now

(Just in time for the phantom rainy season –  its a drought year)





Tree House Number 2: The Roof Goes On

Roofing continues with a layer of Alububble insulation followed by the fish scale tiling.

Edmore the roofer

Edmore the roofer



A roll of Alububble

A roll of Alububble



A layer of Alububble insulation goes on first

A layer of Alububble insulation goes on first



Yes that is a tree sticking out through the roof

Yes that is a tree sticking out through the roof



Rear view with Alububble in place

Rear view with Alububble in place



'Chimney' with green fish scale tiling

‘Chimney’ starts with green fish scale tiling



Chimney frame being hauled up

Chimney frame being hauled up



and lowered into position

and lowered into position



Chimney frame in position

Chimney frame in position



You get the idea

You get the idea



Looking good

Looking good



Tree House Number 2: More Walls and Roof

Edmore sighting his lines for the roofing trusses – actually the rafters. Its the foundations that are inverted roofing trusses!

Edmore sighting his lines for the roof

Edmore sighting his lines for the roof



Sight lines where the rafters will join the tree

Sight lines where the rafters will join the tree



In the tree tops with spirit level!

In the tree tops with spirit level!



Gouging holes for the roof beams

Gouging holes for the roof beams



More gouging

More gouging



Trees were harmed in the making of this production

Trees were harmed in the making of this production



Walls and rafters, and trees

Walls and rafters, trees and trusses



Fufura (giant butterflies)

Fufura (giant butterflies)



Roofing slats going on the the rafters

Roofing slats going on the the rafters



Trusses and rafters

Trusses and rafters



Roofers in action

Roofers in action



Roofers in action

Roofers in action



Didymus

Didymus



Is that a tree in your roofing?

Is that a tree in your roofing?



Nice view of the construction

Nice view of the ongoing construction

Tree House Number 2: The Walls Go Up

The foundations are in place, the floor is down so next the walls go up…

The floor to ceiling windows were made as units of four in the workshop then held in place until the walls are built to support them.

Tree house walls start to go up

Tree house walls start to go up

Didymus practicing building by interlocking planks at the corners (just in case we need to know this technique in the future …. stay tuned wood lovers…).

Interlocking at the corners

Interlocking planks at the corners



We layered shinda (string) in-between the planks to provide a first form of gap closing / draft proofing for where planks were not perfectly machined.

Placing string between each plank

Placing string between each plank



Front door frame with lintel

Front door frame with lintel



Delight and Edmore wall building

Delight and Edmore wall building



You get the idea now!

You get the idea now!



Tree house north wall at sunset

Tree house north wall at sunset



Back door frame facing west

Tree house back door frame facing west



Looking out of the window in Nyanga direction

Looking out of the window in Nyanga direction (west)
